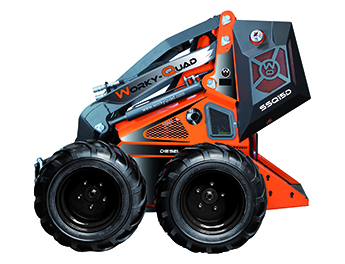

SSQ 15D
Technical Specifications
This machine represents the diesel version of the SSQ range. A powerful, strong and silent Kubota engine!
| General | |
|---|---|
| Manufacturer | Worky Quads |
| Category | Loader |
| Price | Request a Quote |
| Model | SSQ 15D |
| Year | 2019 |
| Condition | New |
| Type of Engine | KUBOTA Z602-E4B |
| Capacity (kW/Hp) | 10.9/14.8 |
| Start up | Electric |
| Displacement cm3/ number of cylinders | 599/2 |
| Revolutions per minute (rpm) | 3200 |
| Adjusted amount of revolutions (rpm) | 3600 |
| Cooling | Liquid |
| Fuel/ fuel tank capacity(l) | Diesel/ 25 |
| Drive system | Hydrostatic 4WD wheels motor |
| Speed (km/h) | 0-6 (proportional) |

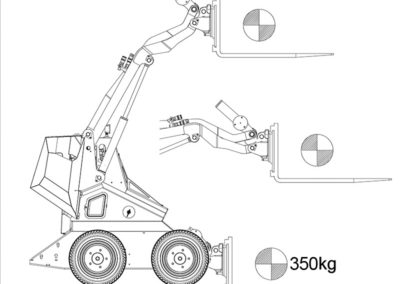

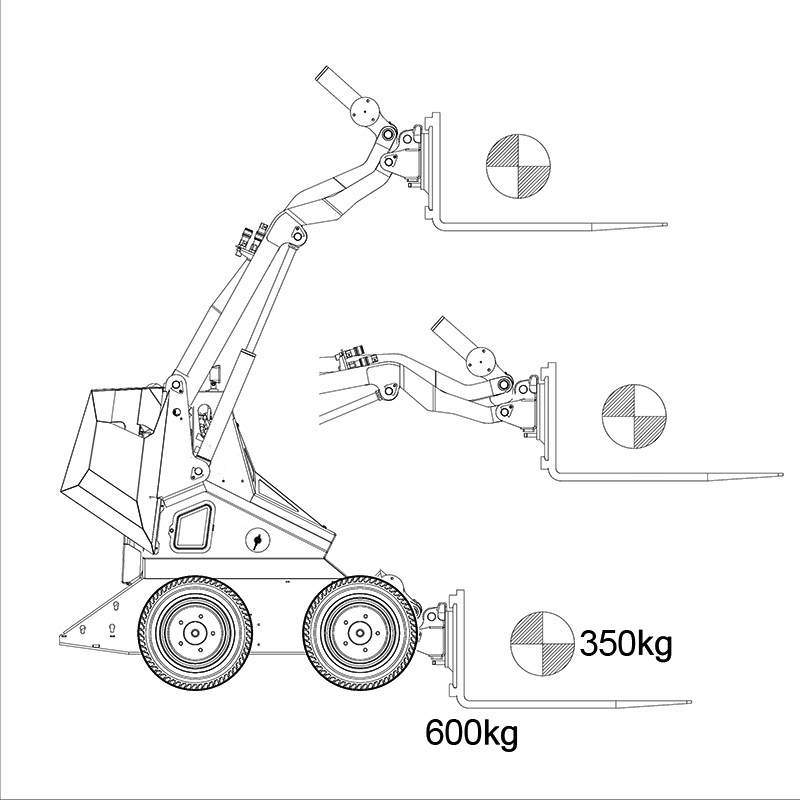

| Lifting capacity (Kg) | 340 |
| Traction force (Kg) | 470 |
| Hydraulic drive system (l/bar) | 25,6/200 |
| Hydraulic working system (l/bar) | 25,6/200 |
| Hydraulic tank capacity (l) | 25 |
| Standard tyres | 23×8.50-12 Skid |
| Electrical system (V) | 12 |
| Battery capacity(Ah) | 45 |
| Braking system | Hydrostatic with 4 hydraulic wheels motor |
| Steering | Skid Steering |
| Hydraulic capacity (Kg) | 600 |
| Breakout force (Kg) | 300 |

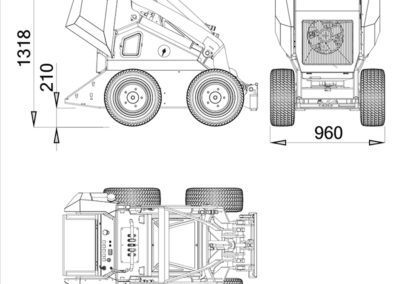

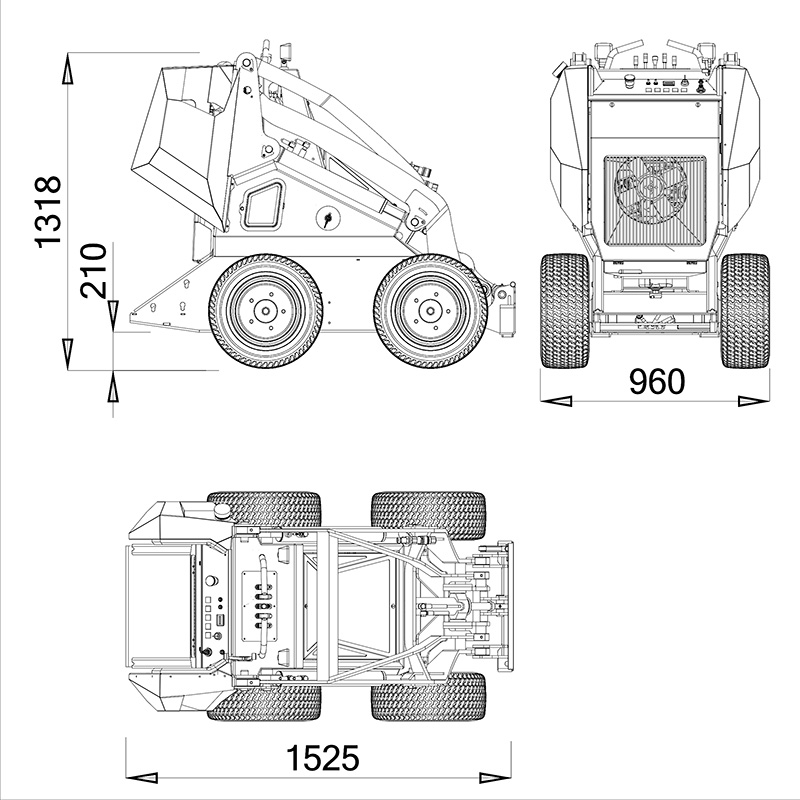

| Dimensions (L mm x W mm x H mm) | 1525x1050x1258 |
| Weight (Kg) | 684 |
| (The a.m. informations may change) |
