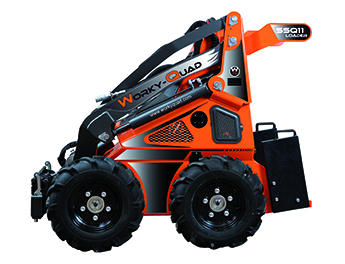

SSQ 11 Country
Technical Specifications
The silage fork is an useful attachment in agriculture and in farms where the spaces are usually very small, especially in stables and sheds.
| General | |
|---|---|
| Manufacturer | Worky Quads |
| Category | Loader |
| Price | Request a Quote |
| Model | SSQ 11 |
| Year | 2019 |
| Condition | New |
| Type of Engine | HONDA GX390 |
| Capacity (kW/Hp) | 8.7/11.7 |
| Start up | Electric |
| Displacement cm3/ number of cylinders | 389/1 |
| Revolutions per minute (rpm) | 3600 |
| Adjusted amount of revolutions (rpm) | 3600 |
| Cooling | Air cooled |
| Fuel/ fuel tank capacity(l) | Petrol (Euro95)/ 6,1 |
| Drive system | Hydrostatic 4WD wheels motors |
| Speed (km/h) | 0-6 (proportional) |

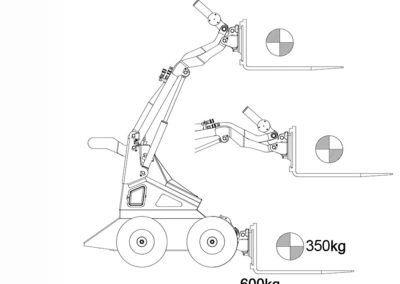

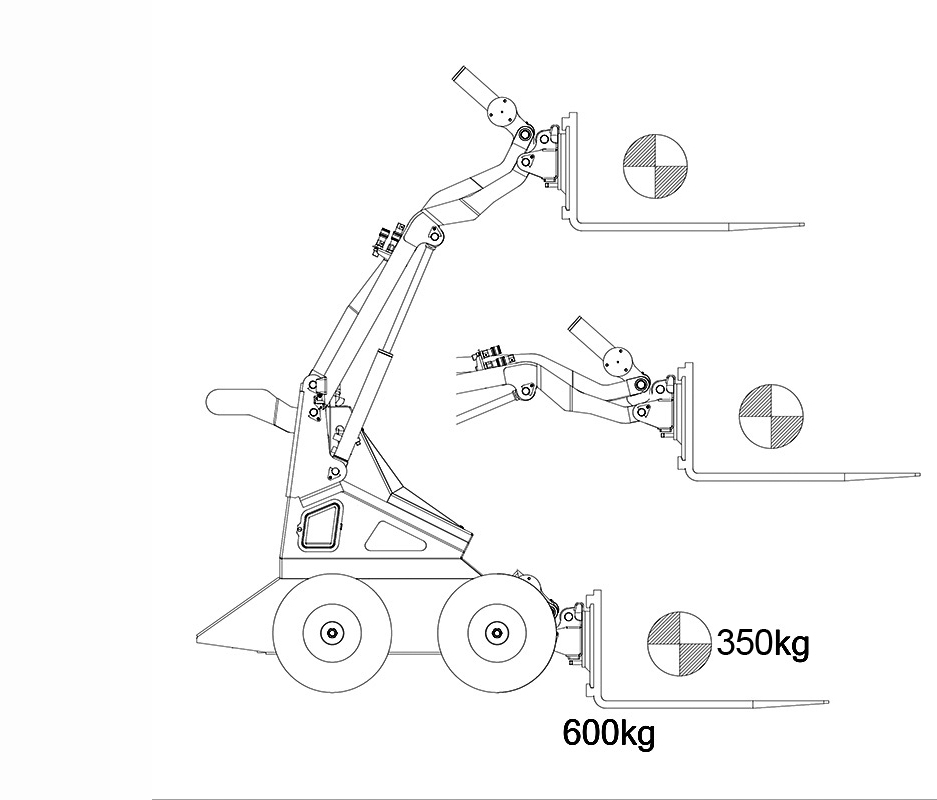

| Lifting capacity (Kg) | 280 |
| Traction force (Kg) | 420 |
| Hydraulic drive system (l/bar) | 21,6/200 |
| Hydraulic working system (l/bar) | 21,6/200 |
| Hydraulic tank capacity (l) | 44 |
| Standard tyres | 18×8.50-10 Skid |
| Electrical system (V) | 12 |
| Battery capacity(Ah) | 45 |
| Braking system | Hydrostatic with 4 hydraulic wheels motor |
| Steering | Skid Steering |
| Hydraulic capacity (Kg) | 600 |
| Breakout force (Kg) | 330 |

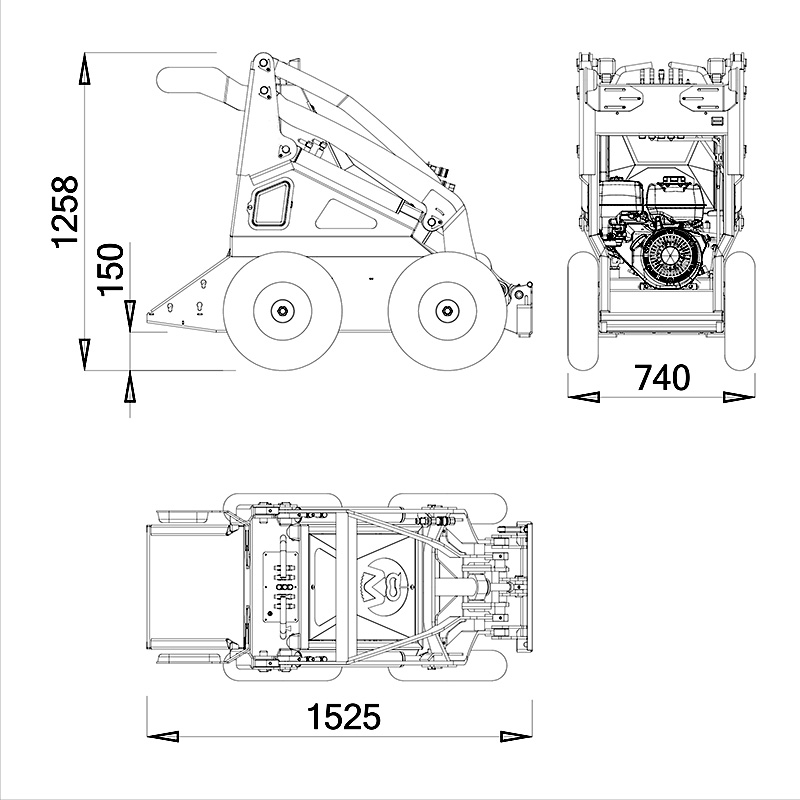

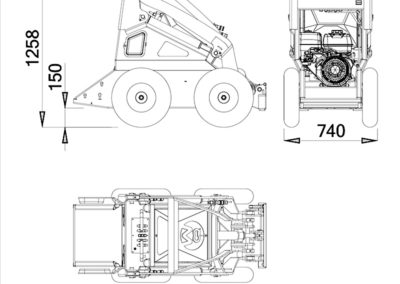

| Dimensions (L mm x W mm x H mm) | 1525x740x1258 |
| Weight (Kg) | 630 |
